Sub-micron spatial resolution

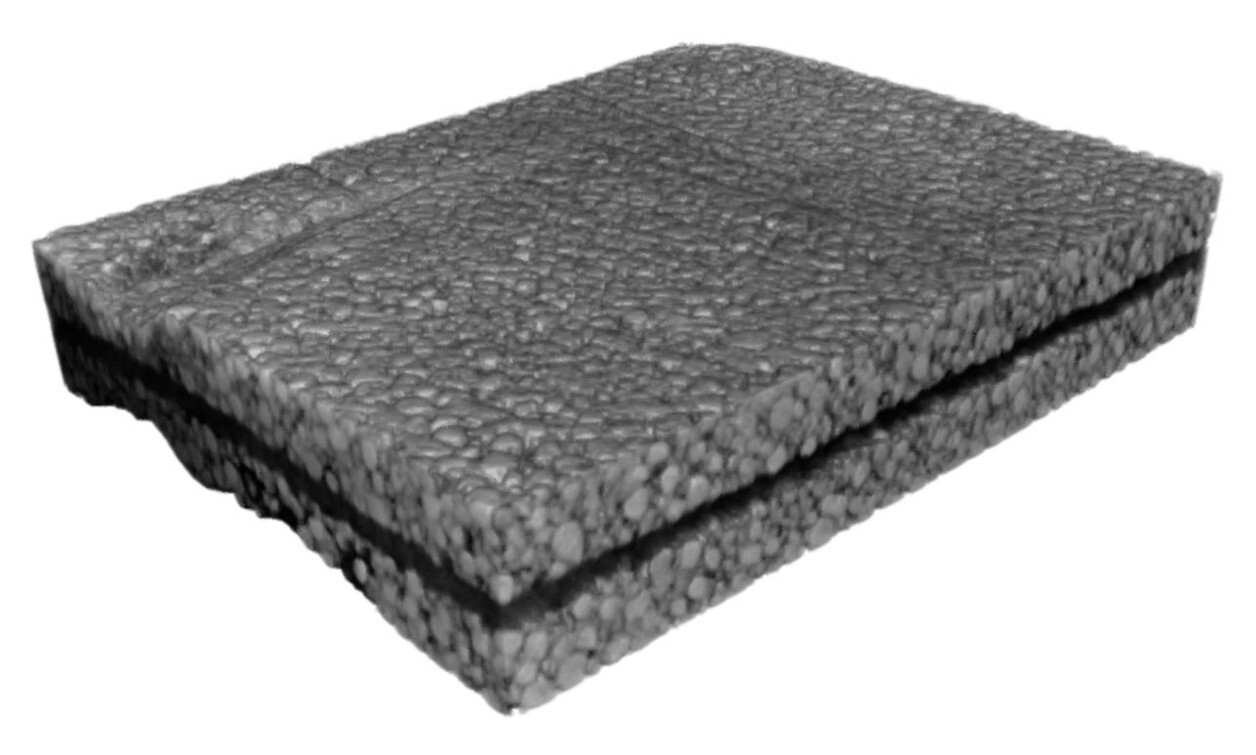

Investigate the smallest features and micro-defects in pouch or cylindrical cells with 600 nm voxel size.

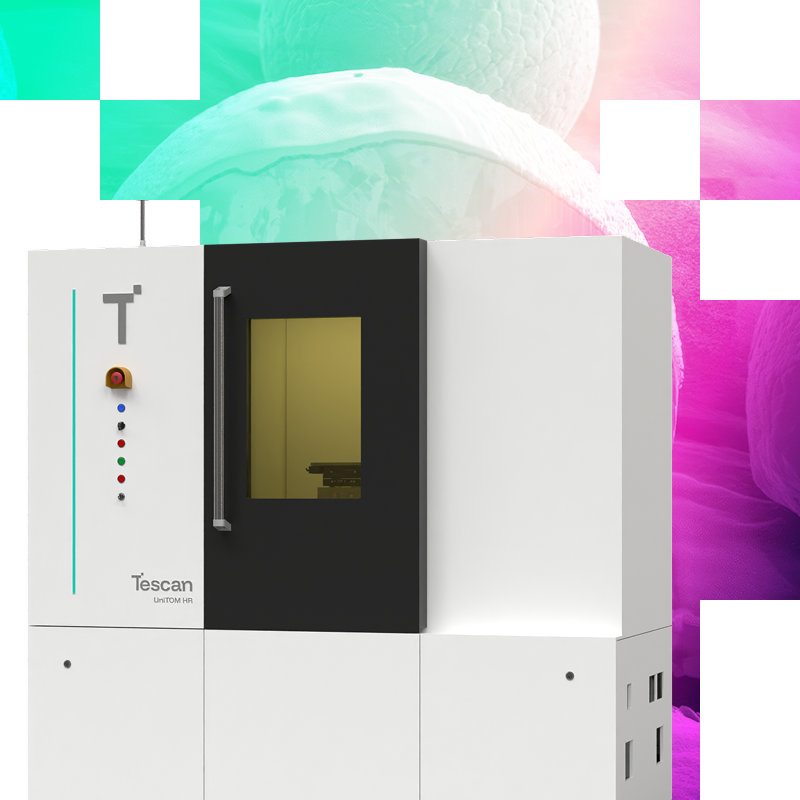

Tescan UniTOM HR for Batteries
Tescan UniTOM HR is the only micro-CT system that combines sub-micron spatial resolution with high temporal resolution dynamic CT in a single instrument. It is tailored for next-generation battery research, delivering non-destructive insights from entire cells down to electrode particles.
- Sub-micron resolution down to 600 nm for imaging fine battery features

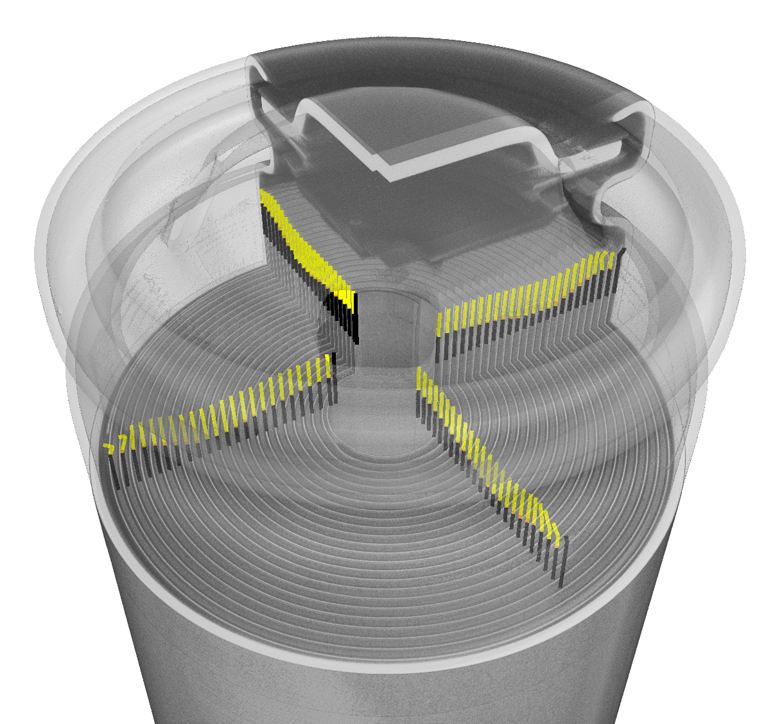

- Multiscale CT from full pouch or cylindrical cells to individual particles
- High-throughput automated batch workflows for quality control and R&D
- Real-time dynamic imaging of charge–discharge cycles and degradation processes
FLEXIBLE ACQUISITION AND CONTROL
.png?width=400&height=301&name=Image%20Element%20(4).png)
Insights into the Role of Porosity in Lithium-Ion Battery Electrodes

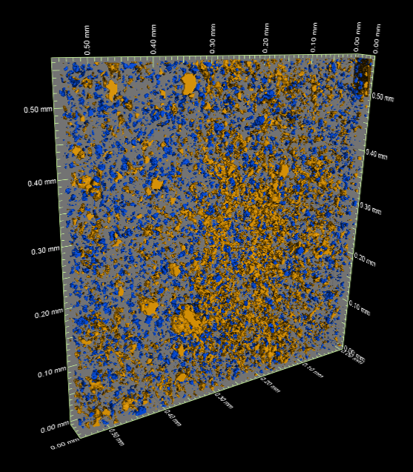

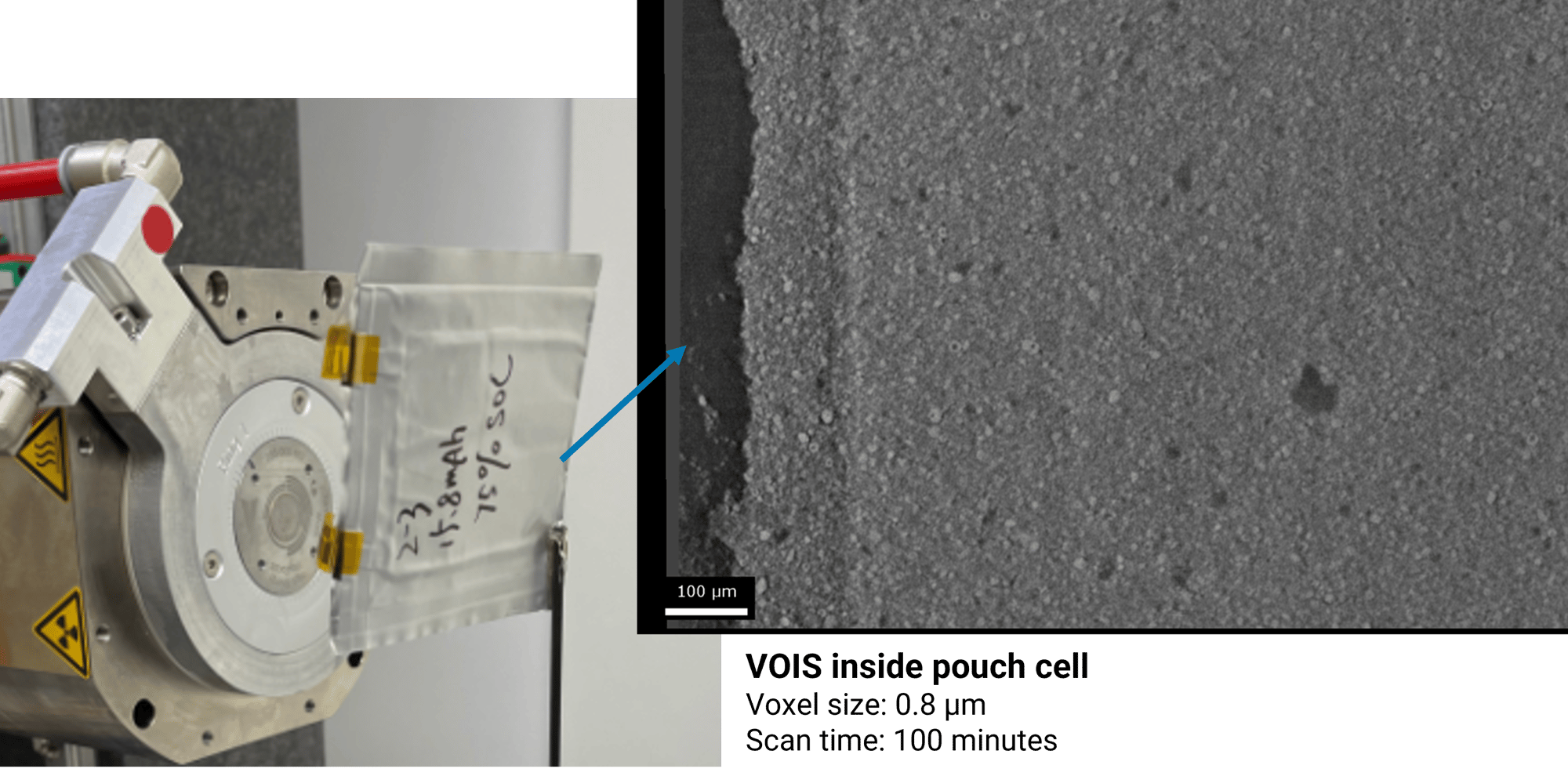

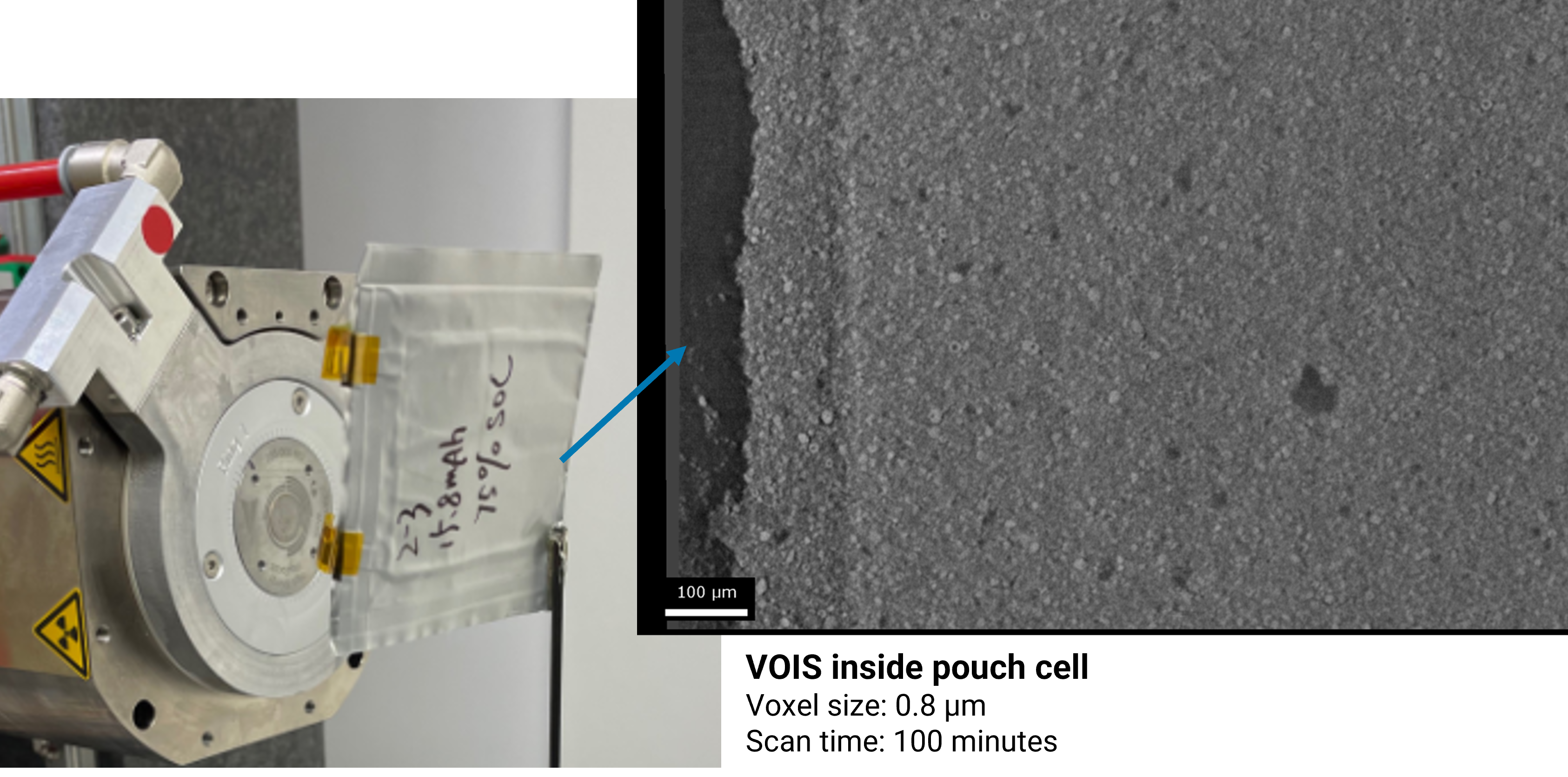

Porosity is a hidden variable that controls electrolyte flow, charge transport, and cycling behavior. Using Tescan UniTOM HR, researchers can non-destructively map pore distribution and connectivity in electrodes.
- Capture full-cell architecture with multi-scale micro-CT
- Measure pore size and connectivity at sub-micron resolution
- Link porosity to electrolyte infiltration and ionic conductivity
“At Dragonfly Energy, our goal is to deliver a more sustainable and cost-effective Li-ion battery, and these metrics are fundamentally defined by dynamic nanoscale interactions occurring inside the cell. TESCAN’s electron microscopy and micro-CT solutions provide valuable, correlative insights into the behavior of these complex systems which enable the development of our innovative cell chemistries.”
Dr. Denis Phares
CEO at Dragonfly Energy
CEO at Dragonfly Energy
AI-GUIDED WORKFLOWS FOR CONSISTENT BATTERY SPECIMEN PREPARATION
TEM AutoPrep™ Pro automates the complete TEM lamella preparation process, delivering clean, Ga-free specimens optimized for nanoscale battery analysis. Integrated into the Essence™ GUI, AutoPrep™ Pro removes operator variability and ensures reproducibility across multiple samples and sites.
AI-guided routines handle trench milling, lift-out, grid placement, and 500 eV final polishing, producing lamellae with the right thickness and orientation for high-resolution STEM, EDS, and ToF-SIMS correlation. Multi-site batch operation enables unattended overnight preparation, saving valuable operator time.
With TEM AutoPrep™ Pro, battery researchers and manufacturers can depend on consistent, high-quality lamellae that reduce preparation time and accelerate the investigation of critical interfaces and degradation mechanisms.
.jpg)
“At Dragonfly Energy, our goal is to deliver a more sustainable and cost-effective Li-ion battery, and these metrics are fundamentally defined by dynamic nanoscale interactions occurring inside the cell. TESCAN’s electron microscopy and micro-CT solutions provide valuable, correlative insights into the behavior of these complex systems which enable the development of our innovative cell chemistries.”
Dr. Denis Phares
CEO at Dragonfly Energy
CEO at Dragonfly Energy
Unlocked content
Output Exmples
leave a contact to access

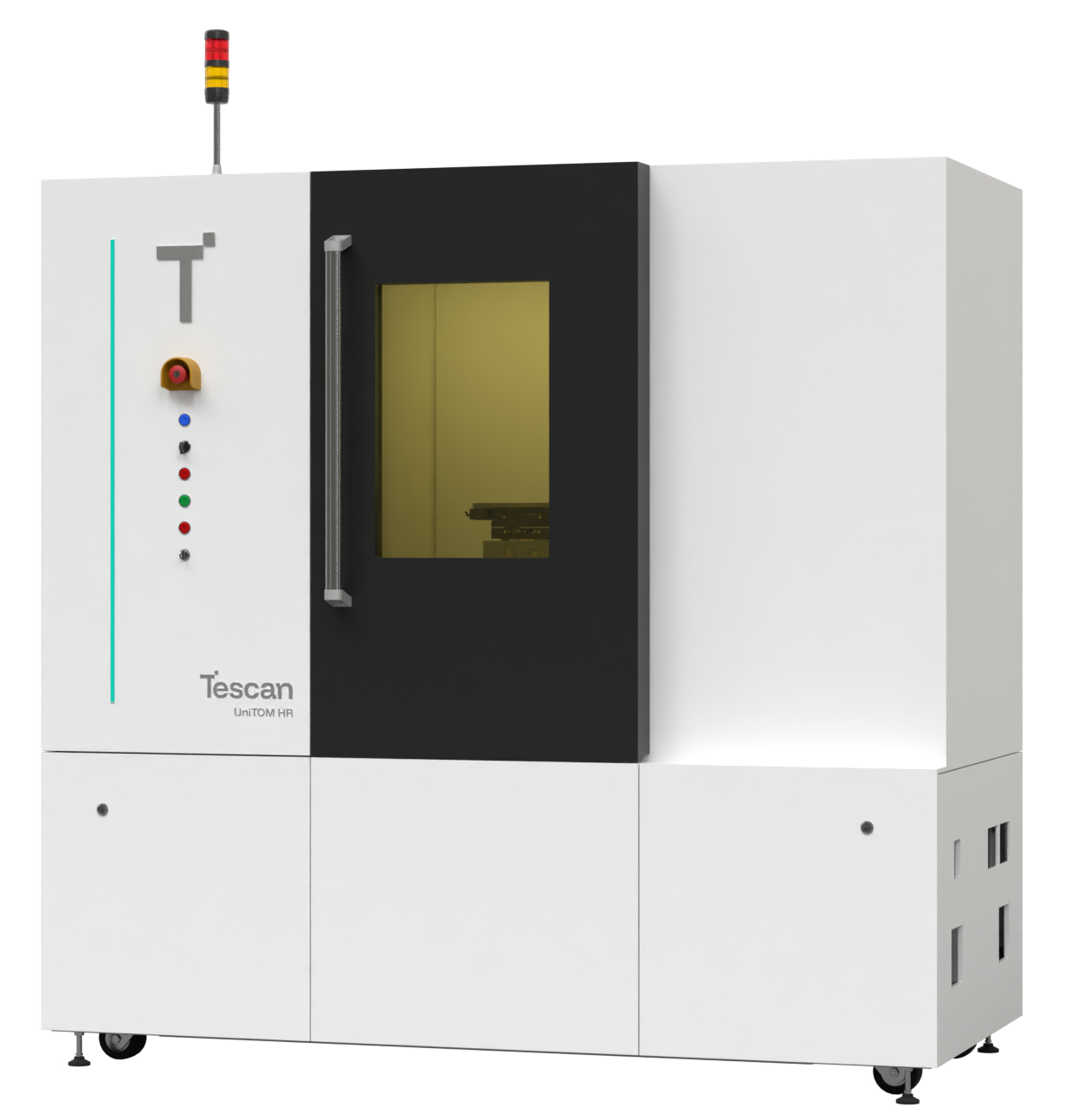

Technical specification
.png?width=1230&height=1293&name=MICRO_UniTOM_HR_1%20(1).png)
