Tescan AMBER X 2 for Semiconductors

Uncover the electrical and structural details of today’s most advanced devices with Tescan AMBER X 2 Plasma FIB-SEM. Purpose-built for semiconductor applications, AMBER X 2 combines Xe plasma FIB with proprietary Nanoflat, Chase, and C-Maze chemistries to deliver uniform, artifact-free delayering at sub-10 nm nodes.

The system ensures you have reproducible workflows across logic, memory, and I/O regions, supporting electrical fault isolation, failure analysis, and transistor-level probing.

Perform artifact-free delayering with Nanoflat, Chase, and C-Maze chemistries

Protect device integrity using low-kV Xe Plasma FIB milling

Control every step with end-point detection and live monitoring

Integrate delayering with in situ nanoprobing in a single workflow

Deprocess I/O and thick metal layers using low angle polishing

Resolve critical details with BrightBeam™ UHR SEM imaging at sub-500 eV

HOW Tescan AMBER X 2 SUPPORTS YOUR SEMICONDUCTOR ANALYSIS

Deliver Reliable Sub-10 nm Delayering

Achieve uniform, artifact-free results with Nanoflat, Chase, and C-Maze chemistries designed for advanced nodes.

Preserve Device Integrity

Maintain electrical properties during preparation with low-kV Xe Plasma FIB milling and inert ions.

Control Processes with Confidence

Rely on end-point detection and live monitoring to stop precisely at the target layer.

Connect Workflows Seamlessly

Combine automated delayering and in situ nanoprobing in one Plasma FIB-SEM system.

Access Planar I/O Layers

Ensure flat, reproducible deprocessing of thick metal and I/O regions using low-angle polishing with a clamp holder.

Resolve Clarity at Every Scale

Resolve transistor-level details with BrightBeam™ UHR SEM optics at sub-500 eV.

AMBER X 2

FOR SEMICONDUCTOR RESEARCH APPLICATIONS

Tescan AMBER X 2 in Semiconductors

With AMBER X 2, you can prepare devices for electrical fault isolation, yield analysis, and transistor characterization without compromising integrity.

Automated delayering workflows and field-proven chemistries help you maintain consistency across logic, memory, and I/O regions. This supports reliable process development and failure diagnostics at today’s most advanced nodes.

Tescan AMBER X 2 in Failure Analysis

Failure analysis engineers benefit from streamlined workflows that link delayering, imaging, and electrical probing. AMBER X 2 enables you to reach the layer of interest faster, isolate defects with precision, and confirm root causes with reproducible results.

Tescan AMBER X 2 in Device Characterization

For device engineers, AMBER X 2 provides the tools to link structural and electrical insights in one platform. Whether probing PMOS and NMOS transistors or investigating interconnect behavior, you gain confidence in your data with stable workflows and ultra-high-resolution SEM imaging.

Tescan DELAYERING™

AUTOMATION THAT IMPROVES CONSISTENCY

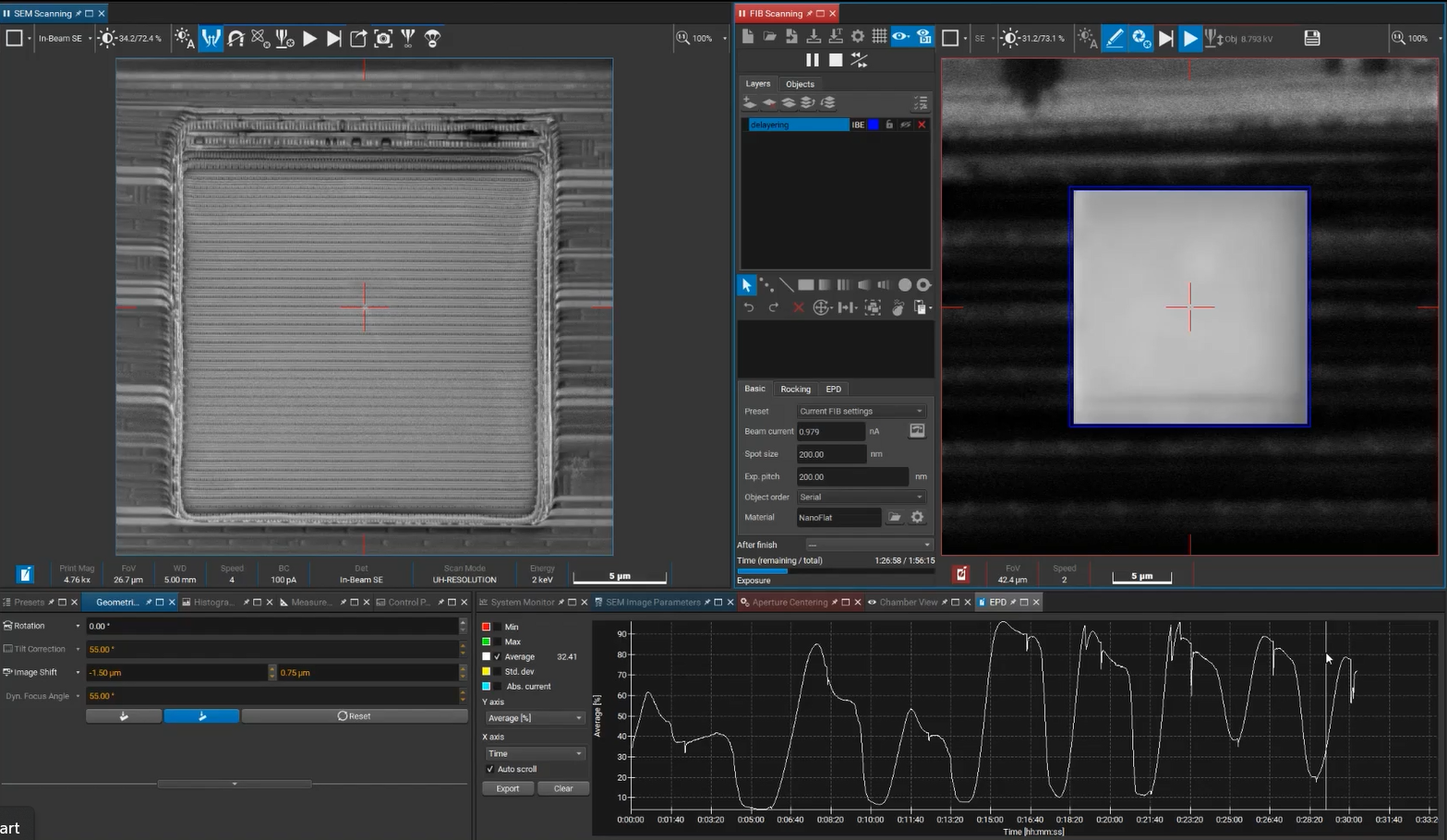

Tescan AMBER X 2 is designed to work seamlessly with the Tescan Delayering™ module. Automated recipe control and factory-defined templates let you carry out repeatable delayering across logic, memory, and I/O regions, reducing operator variability and ensuring consistent results.

The system integrates advanced monitoring tools, including end-point detection and live signal tracking, so you can stop precisely at the target layer without over- or under-milling. Proprietary Nanoflat, Chase, and C-Maze chemistries are optimized within the software, giving you reproducible outcomes at sub-10 nm nodes.

For challenging applications, AMBER X 2 supports low angle polishing with a dedicated clamp holder, delivering planar deprocessing of thick metal and I/O layers. Together, these capabilities streamline semiconductor workflows, helping you move efficiently from delayering to imaging and in situ nanoprobing in a single Plasma FIB-SEM platform.

Unlocked content

Output Examples

Get the most out of Tescan

This is more than information; it's an advantage. We've compiled our technical whitepapers, detailed product flyers, and on-demand webinars to provide you with the knowledge that makes a real difference. Sign up now to access the insights you need to make an impact.

TESCAN AMBER X 2 for Semiconductors

Technical specification

SEM	Resolution: Ultra-high resolution at sub-100 eV with BrightBeam™ optics
SEM	Imaging modes: Secondary electrons, BSE, Passive Voltage Contrast SEM
FIB Preparation Process	Ion source: Mistral™ Xe⁺ plasma ion source (ECR type), source lifetime not limited
	Max current: >3.3 µA at 30 keV for high-throughput large-area milling
	Low keV capability: Gentle delayering to preserve device integrity
	Delayering chemistries: Nanoflat, Chase, and C-Maze for uniform removal
Automation & Control	Software: Tescan Delayering™ module with factory-defined recipes
	Monitoring: Live end-point detection and real-time signal tracking
	Workflow integration: Seamless transition to in situ nanoprobing
Sample Handling	Stage: Compucentric 5-axis motorized stage
	Optional: Piezo XYZ sub-stages of 3^rd party nanoprobing platforms Tescan for probing geometry control
	Holder: Dedicated clamp holder for low angle polishing of I/O layers
Nanoprobing & Characterization	Applications: PMOS/NMOS transistor probing, EFA-ready workflows
	Integration: In situ nanoprobing within the same platform
	Contrast imaging: Passive voltage contrast SEM for electrical inspection

SEM

Resolution: Ultra-high resolution at sub-100 eV with BrightBeam™ optics

Imaging modes: Secondary electrons, BSE, Passive Voltage Contrast SEM

FIB Preparation Process

Ion source: Mistral™ Xe⁺ plasma ion source (ECR type), source lifetime not limited

Max current: >3.3 µA at 30 keV for high-throughput large-area milling

Low keV capability: Gentle delayering to preserve device integrity

Delayering chemistries: Nanoflat, Chase, and C-Maze for uniform removal

Automation & Control

Software: Tescan Delayering™ module with factory-defined recipes

Monitoring: Live end-point detection and real-time signal tracking

Workflow integration: Seamless transition to in situ nanoprobing

Sample Handling

Stage: Compucentric 5-axis motorized stage

Optional: Piezo XYZ sub-stages of 3^rd party nanoprobing platforms Tescan for probing geometry control

Holder: Dedicated clamp holder for low angle polishing of I/O layers

Nanoprobing & Characterization

Applications: PMOS/NMOS transistor probing, EFA-ready workflows

Integration: In situ nanoprobing within the same platform

Contrast imaging: Passive voltage contrast SEM for electrical inspection
